PSP Plug and Play Engine Swap Harness for Honda Ruckus GY6

PSP Plug and Play Engine Swap Harness for Honda Ruckus GY6

PSP Plug and Play GY6 engine harness will eliminate the need to fuzz around with wiring your engine swaps! Reduce the chances of errors and problems. High-end black loom with all loom ends and connectors heat shrieked.

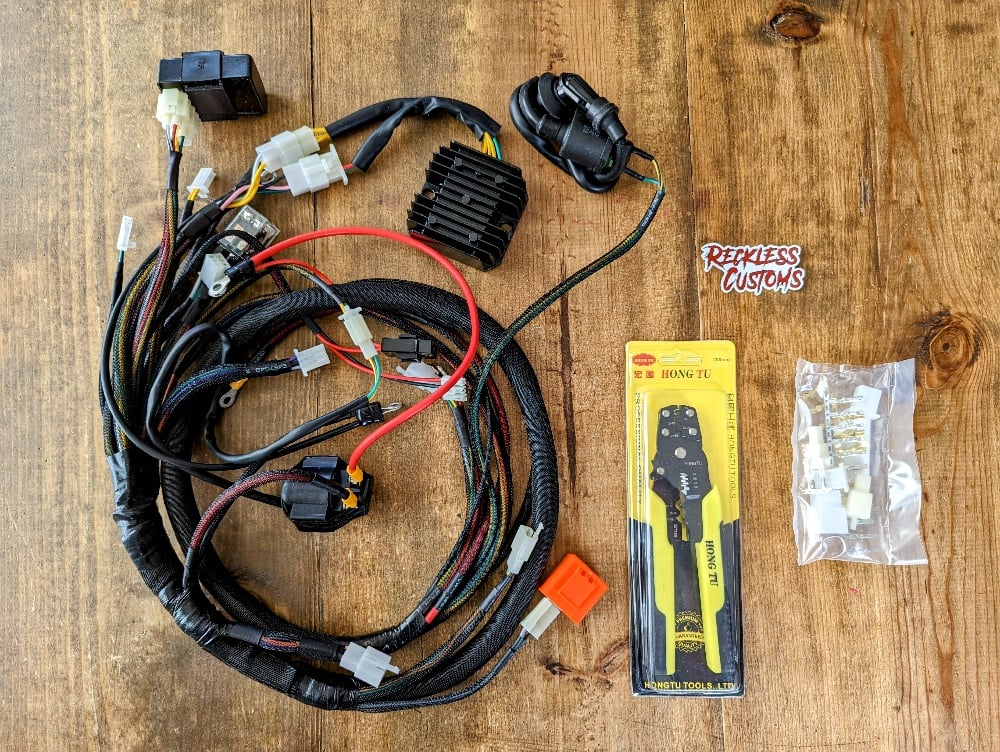

Harness Kit Includes:

Complete Harness for GY6 11 Pole Motor
CDI, Rectifier, Coil, and Starter Relay
Installed Honda ruckus Ignition Plug

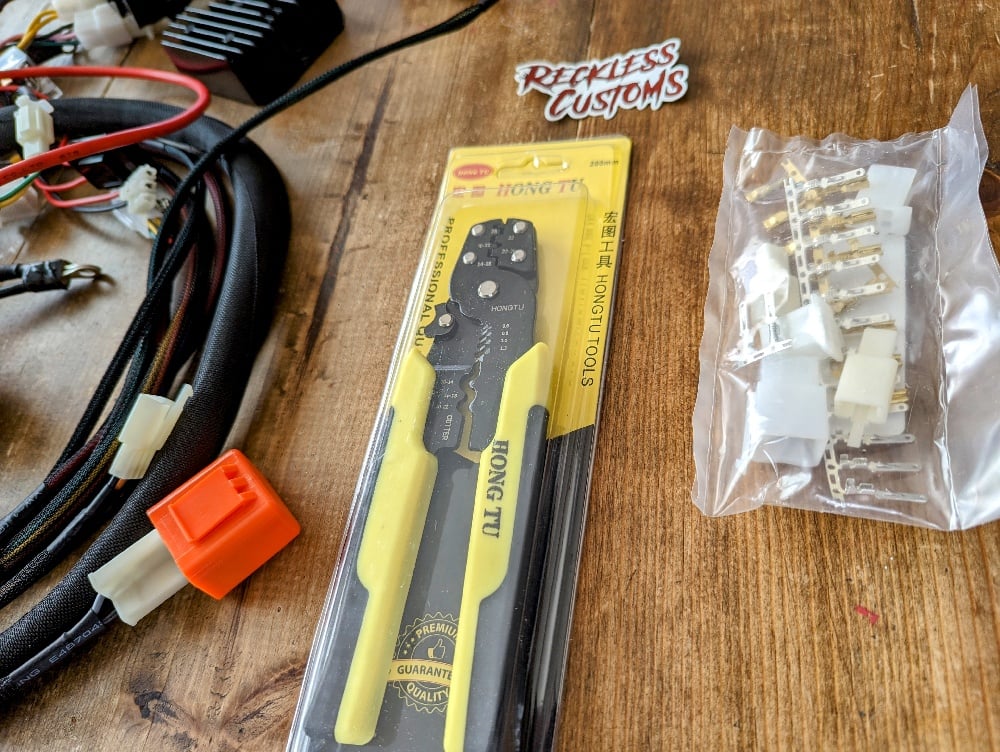

Pin Crimp Tool
Extra Pins and Connectors
Full Color Instructions including pin colors, connector type and wiring pin diagram

Extra pins and plugs are included with the harness. This allows you to use whatever rear tail light you choose.

If you choose to use the OEM left control it plugs right into the harness. If you decide to use an aftermarket control the pins and connectors are included for the use of aftermarket controls too.

The harness has an extra 12v plug. It also includes a 2 pin female plug and pins for whatever you ant to use it for.

The harness has 2 pin start button plug and they provided you with a 2 female pin plug. Customers can use their own start button.

Headlights are wired 12v DC. Turn on the Ruckus and your lights will turn on.

Timing Pick Up wires will be red/black to red/black. The blue with white stipe goes to solid red.

**Electrical Items are non-returnable/refundable & have No Warranty. Please contact us for any questions. USE AT OWN RISK.
